Point Cloud Conversion to 3D Modeling: The Modern Road to Renovation

Renovation projects of buildings of high significance, including heritage monuments, are difficult to execute with legacy tools and traditional surveying methods. Using conventional tools leads to spatial inaccuracies in surveys and consequent issues in accurate retention of the architectural essence of a structure.

Point cloud conversion of laser scan data to 3D models offers a non-invasive tool to surveyors that significantly reduces surveying time, can capture every detail, derive information accuracy, lower risks, and achieve positive project outcomes.

A point cloud to BIM model created using Revit, delivers in-depth visualization of Mechanical, Electrical, Plumbing and Firefighting (MEPF) equipment within cramped spaces, resulting in enhanced visualization capabilities for renovation and retrofitting.

Point cloud modeling helps in accurate and complete documentation of as-built conditions to enable architects, structural engineers, and surveyors understand the intricacies of a heritage structure and preserve it. Provided with the right data set as input including drawings, scans, 360-degree photos, and other information, a coordinated as-built 3D model can help from creating accurate surveys to designing effective facilities management.

Decoding the tech: What is point cloud conversion to BIM?

Point cloud to BIM conversion or point cloud modeling of laser scan data in BIM, involves creating a 3D model from millions of data points scanned by a laser scanner and aggregated into a point cloud. A point cloud to BIM model is built within BIM tools like Revit ensuring data accuracy and integrity. This coordinated 3D model in a virtual space is used for renovations, remodels, and facilities management.

The process of transforming laser scan to 3D BIM modeling begins with data acquisition. A 3D laser scanner is used to record the physical attributes of the site or structure, forming a dense collection of data points, or a “point cloud.”

This raw data is then processed using specialized software, cleaned, and filtered to remove noise and irrelevant points. Multiple scans from different perspectives are then registered and aligned in a process called ‘stitching,’ to create a holistic and accurate 3D depiction of the site. The incorporation of scan to BIM benefits enhances the accuracy of the model and facilitates more efficient workflows.

With the completion of the point cloud, it’s imported into BIM software like Autodesk Revit. The BIM model is created by tracing over the point cloud data, forming the elements of the building including walls, floors, roofs, and systems like Mechanical, Electrical, Plumbing, and Fire Protection (MEPF).

This model’s accuracy is cross verified against the original point cloud data, ensuring true representation of as-built conditions. Once validated, the model helps in further design, analysis, or facility management, and to enhance collaboration and reduce error risks.

What are the challenges of using legacy processes and tools in surveys?

• Absence of visualization increases risks in accurate reconstruction of pre-existing conditions.
• 2D drawings are unable to delineate the spatial requirements of the building.
• CAD-based assets lack the capabilities needed for estimation accuracy.
• Inaccurate and incomplete data leads to shortcomings in operational productivity.

Key benefits of point cloud to 3D modeling

Best practices to get an optimal 3D point cloud to BIM model

The following tips ensure a point cloud to BIM model will garner high accuracy, lower project time, improve visualization, and drive recommended project mapping.

• Fixing a logical base point and coordinate system.
• Making sure the point cloud registration is precise.
• Removing unwanted noise from the point cloud data.
• Performing a thorough side-by-side comparison of the scans with drawings and pictures including 360-degree images.
• Reducing the point cloud dataset to avoid unnecessary processing and system performance lags.
• Review the building orientation for its resolution.

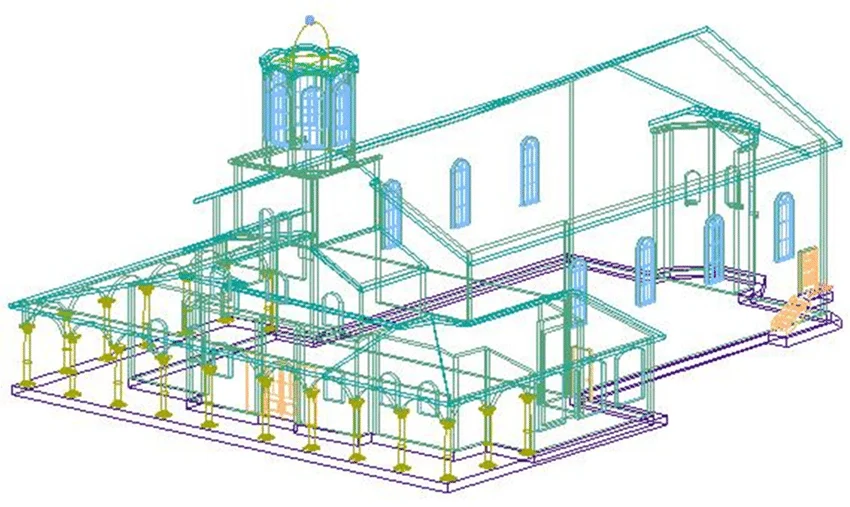

Why ReCAP and Revit the most powerful software are tools to create 3D models?

Autodesk ReCAP is a premier software to register, clean, and index raw data from scanners. If you are using ReCAP, it can help you process large datasets into smaller and manageable .rcp files. This helps surveying firms erase noise and align scans accurately. It also ensures your point cloud is effective and adds value for your BIM project.

Also, Revit is one of the leading BIM authoring tools to convert point clouds into smart 3D models. Once the ReCAP files are linked, stakeholders are able to track parametric floors, walls, and structural members over original scans. This fosters conflict detection, information-rich documentation, and swift collaboration.

Source: researchgate.net

Benefits of outsourcing BIM modeling for renovation projects for surveyors

As a surveying firm, you can leverage numerous benefits if you outsource 3D point cloud modeling needs to trusted BIM service providers like TrueCADD.

• You gain access to specialized resources and tools which reduces costs related to labor and operational expenses. With specialization in Scan to BIM workflows, they can help you extract complex features and improve Revit modeling.
• You get to take advantage of a faster turnaround as outsourcing partners do the heavy lifting for you. It does not matter how large and complex your project is. Even if there is a sudden surge in workload, resources can be ramped up as required.
• As a surveying firm you do not have to worry about investing a large capital amount for hardware, software, or training.
• You can spend important time on the site and build client relations rather than waste time on digital drafting.

Conclusion

As the article comes to a closure, you can easily say Point cloud conversion will continue to provide significant value for surveying firms. It would not matter if your project was complex or large; 3D point cloud modeling would navigate every obstacle and provide deliverables that are high-performance and efficient.

Point cloud to BIM is truly the modern road to renovation and there is no way you can neglect this technology for future retrofit or renovation projects. Also, if you are facing challenges in renovation and retrofitting, it is best to partner with a trusted BIM service provider like TrueCADD to leverage a greater business impact.
